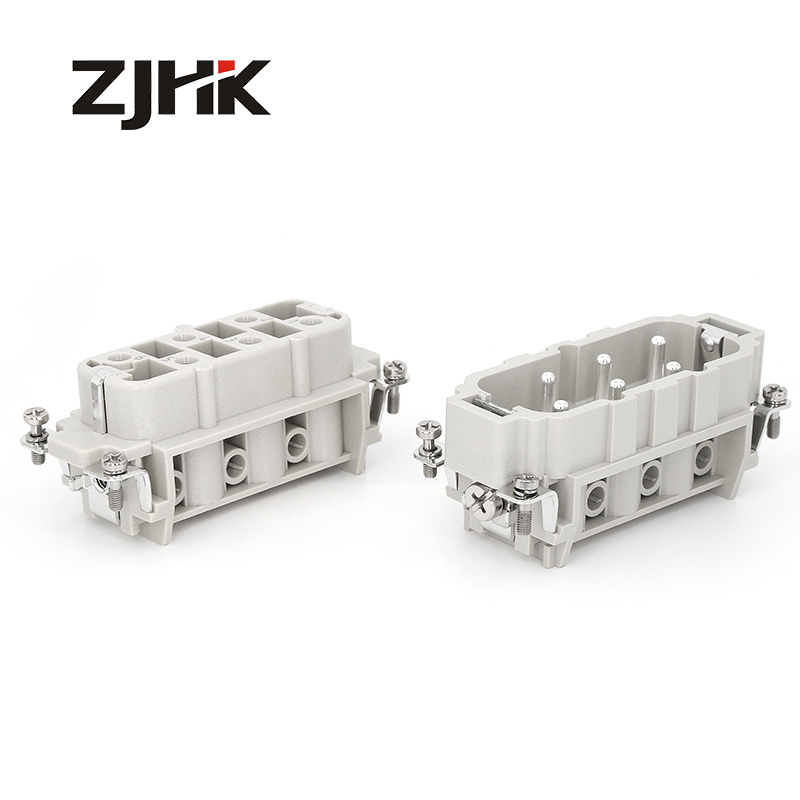

HSB High Current Insert, 6 + PE, 35A, 690/400V,Screw Terminal
- Product Code: HSB-006-M
- Availability: In Stock
| Part Number | HSB-006-M&F |
| Series | HSB High Current Insert |
| Certifications | CE,CCC,CQC,ROHS |
| Descriptions | HSB Series High Current Heavy Duty Power Connector Insert, 6 Poles + PE, 35A, Male&Female, Screw Terminal |
| Data Sheet | |
| Features | |
| Gender | Male&Female |
| Mating Cycle (Mechanical Working Life) | >= 500 |
| Size | 16B |
| Working Temperature Range | -40⁰C … +125⁰C |
| Termination Method | Screw Terminal |
| Number of Contacts | 6 + PE |
| Electrical Data | |
| Rated Current | 35A |
| Rated Voltage Acc. to EN61 984 | 690/400V |
| Contact Resistance | <= 1mΩ |
| Insulation Resistance | >=1010Ω |
| Pollution Degree | 3 |
| Wire Cross Section Range | 6mm2 |
| Wire Gauge | 10AWG |
| Material | |
| Inserts | Polycarbonate |
| Contacts | Hard-Silver Plated Copper Alloy |
| Flammability Acc. to UL 94 | V0 |
Experiences: We have experiences for heavy duty connector 9 years and developed hundreds of insert and housing models, such as HA, HE, HEE, HD, HDD, HM, HK, HSB, HQ and H3A, H10A, H16A, H32A, H6B, H10B, H16B, H24B, H32B, H48B.
Strict Test and Quality Control: 100% QC checked before selling. We confirms to ISO2008:9001 system and own various test machine, including ncluding temperature measuring device, voltage/insulation resistance tester, Silver plating density test machine, flame retardant machine, Salt spray test machine and plugging (push and pull strength) test machine.
Facility: We own over 10000mm2 of workshop and assembly space and reach monthly output of 100,000 pieces. All the spare parts are processed in our workshop from injection, dia casting, drilling, punching, surface treatment, to assembly and packing.
OUR ADVANTAGE:
OEM: We have our own mold center to enable us develop new models every year. Customer design and logo is provided.
Competitve Price: with the help of advanced machines and assembly lines, we can redue our cost greatly and offer an competitive price to our customer and help them enter market.
Fast Delivery: A large number of stock enables us to provide a fast delivery within 3 days for small qty, 7~15 days for bulk order. Customized order will take 15~25 days.
Quick response: all inquiries will be answered with 24 hours. A group of experiences engineers are ready to answer all of your questions.
Free samples: small samples are offered freely for a quality check.
FAQ:
1. Warranty Time.
A:12 month. An-y problem of the quality is changed by your next order free.
2.Free Sample.
A:we provide small products to check quality for you, just you pay the express fees.
3.What’s your material for inserts ?
A:In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.
4.What about SABIC company?
SABIC is a Saudi diversified manufacturing company, active in petrochemicals, chemicals, industrial polymers, fertilizers, and metals. It is the largest public company in the Middle East and Saudi Arabia as listed in Tadawul. 70% of SABIC's shares are owned by Saudi Aramco.
