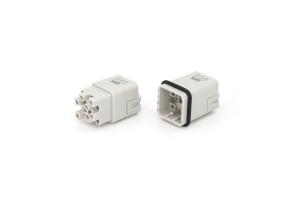

12 pin compact inserts heavy duty Wire connector
Inserts, Crimp termination, Male&Female, Polycarbonate (PC), RAL 7032 (pebble grey),
Rated current: 10 A
Size: 3 A
Contacts: 12
Conductor cross-section: 0.14 ... 2.5 mm²
Replace Han 12Q
Specifications
| Number of contacts | 12+PE(Grounding) |
| Working Current | 10A |
| Working voltage | 400V |
| Rated impulse voltage | 6KV |
| Pollution degree 2 also Working voltage | 400/690V |
| Insulation resistance | ≥1010Ω |
| Material | PolyCarbonate |
| Working conditions | Max Temperature 125°C |
| | Min Temperature -40°C |
| Mating cycle 500 times | more than 500 times |
| Terminal | Crimp terminal |
| Wire gauge | 0.14-2.5mm²(AWG26-14) |
| PE screw terminal | Quick Lock Termination |
| Surface (Contacts) | Silver plated and Gold plated |
| Shell size of inserts | H3A |
| IP65 Anti Dust and Moisture, No Liquid immersion even at short time. | |
| Not for Electrical Interruption | |
Note:Order Crimp Contacts Separately

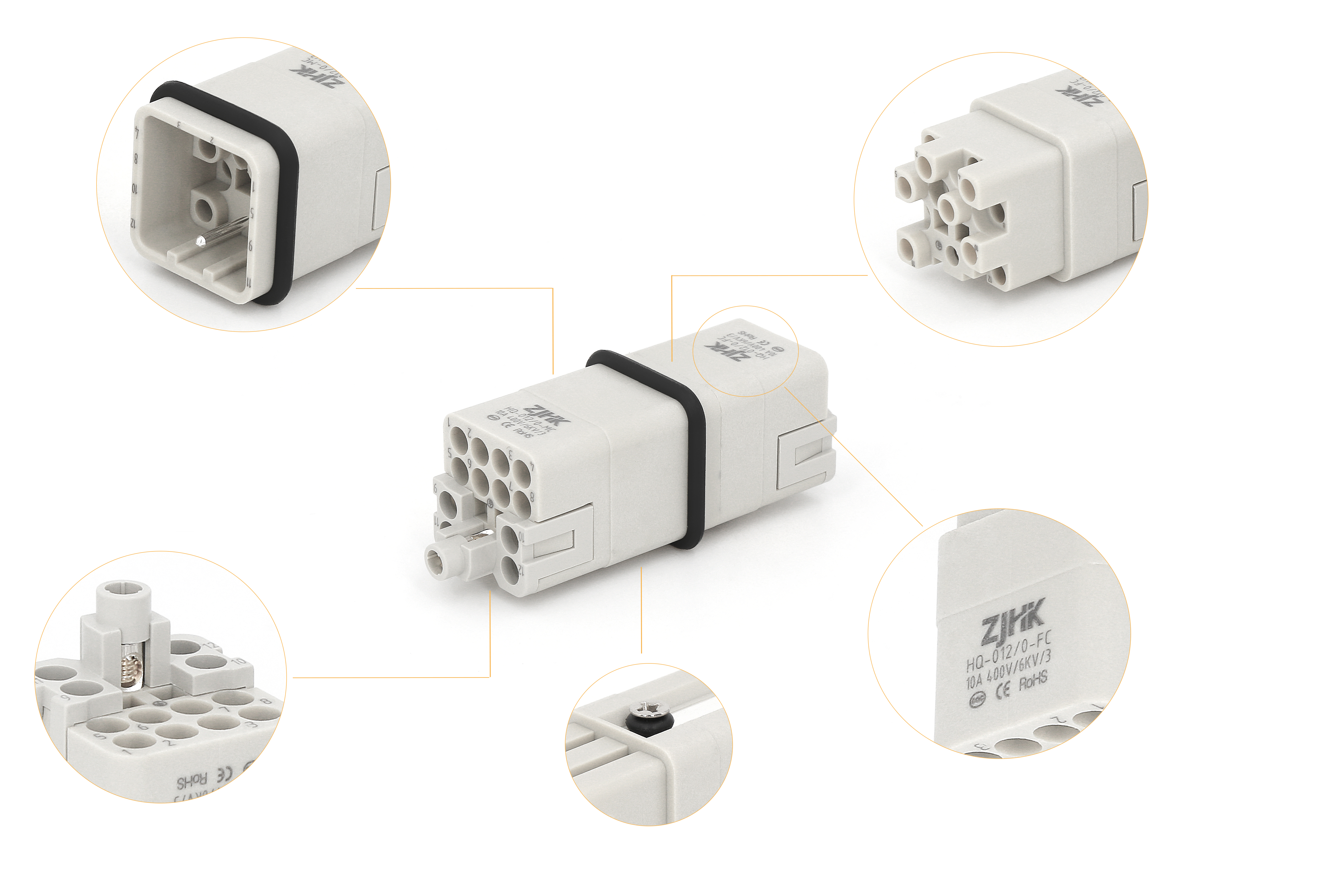

Details View
Acceptable wire cross section area:
- 0.37mm2
- 0.5mm2
- 0.75mm2
- 1.0mm2
- 1.5mm2
- 2.5mm2
Crimp connection advantage
ZJHK HQ Connectors expands the portfolio of the smallest Han 3A size range. An area measuring 42 mm² is enough room for 3 power contacts and the protective earth contact (HQ 3/0) or 4 power contacts (HQ 4/0 ).
This makes them both the most powerful in the compact industrial connector class.
Both connectors are used in industrial environments. They are ideally suited to the needs of the semi-conductor industry.
The HQ 3/0 with protective earth contact is designed for 3-phase earthed networks and is used in three-phase motors. It can fit all housings in the 3A size, ie all plastic and metal varieties, EMC and also the extremely robust HPR and stainless steel housings.
The HQ 4/0 comes with 4 power contacts and is used to enable equipment such as ventilators, fans or extraction units to be connected.
Because these consumers are very common in the semi-conductor industry, the HQ 4/0 is the ideal solution to reduce costs because two of the consumers can be connected w ith one connector.
The connector is also ideally suited for DC applications. However, in this case, it can only be used in 3A size plastic housings.
